- Dynamic charging up to 22kW on three-phase AC power
- Wi-Fi, Ethernet, 4G and RFID
- Type 2 socket with auto-lock
- Integrated SolarCharge *new* - Integrated SolarCharge enables you to charge from your solar panels, leveraging your surplus green energy whilst also reducing charge costs
- Interchangeable face plate, change the shade or colour - BUY ONLINE
- Improved ease of installation
- Fully compliant with the latest Electric Vehicles (Smart Charge Points) Regulations
- Suitable for residential and commercial use (three-phase power required)
- Two base and one rear entry points
- Full smart functionality and OCPP 1.6J connectivity
- No earth rod required - integrated open PEN conductor protection
- Integral RCD with 30mA AC and 6mA DC detection
- Integrated Class C power meter, with the option for an external MID meter
- Compatible with EV stands from Sync Energy (Codes: EVASTAND12S, EVASTAND12T)
- 3-year warranty
Compatible with all electric and hybrid plug-in vehicles

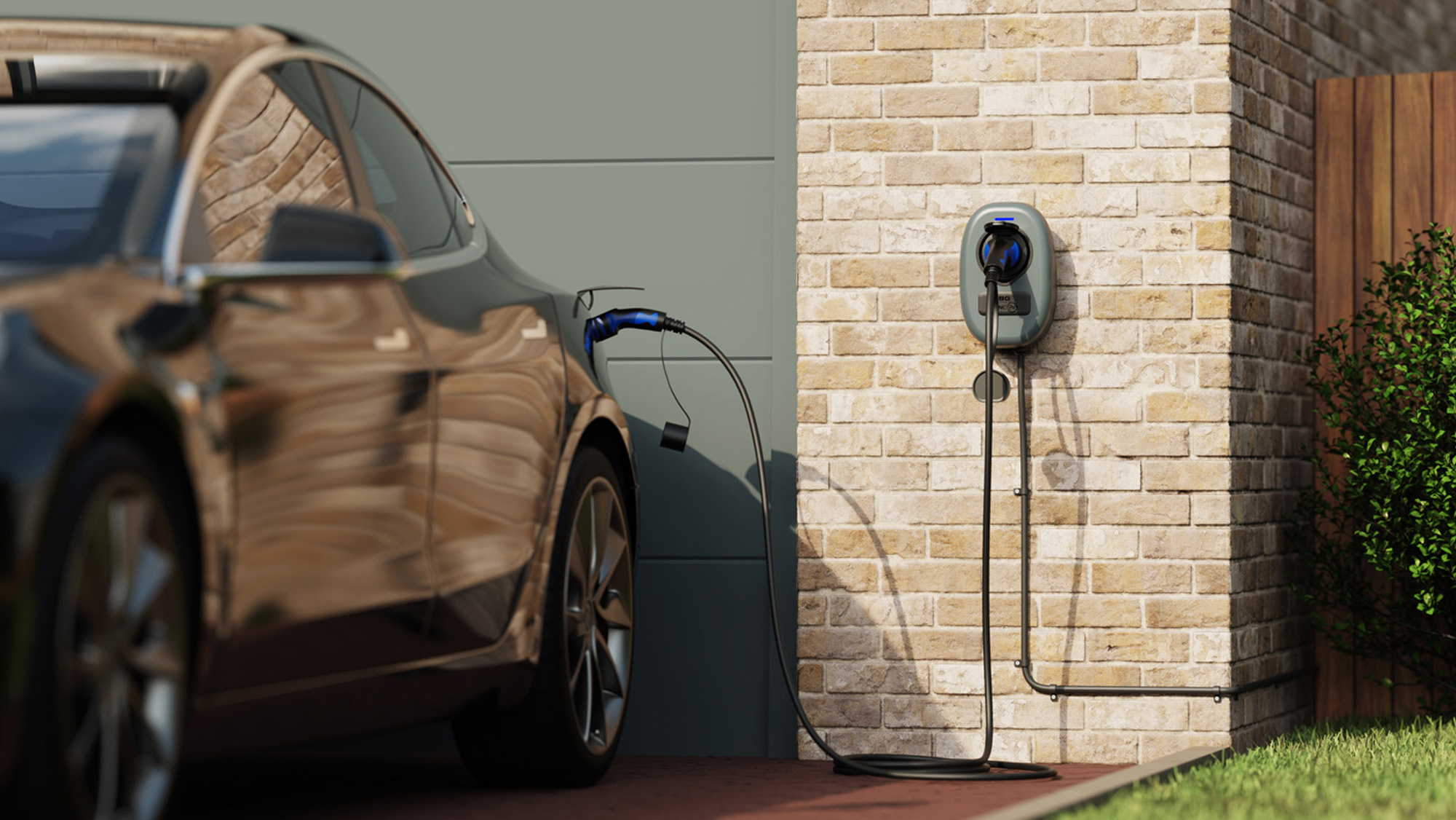

22kW - Our next generation smart high-power charger. Smaller, easier to install, and colour-customisable.
Wall Charger 2 22kW Socket, with Wi-Fi, LAN, 4G and RFID (Code : EVWC2S7GGR)
- Dynamic charging up to 22kW on three-phase AC power
- Wi-Fi, Ethernet, 4G and RFID
- Type 2 socket with auto-lock
- Interchangeable front fascia, change the shade or colour!
- Powered by Monta - Integrated SolarCharge - Leverage your surplus green energy from your solar panels and reduce charging costs
- Improved ease of installation
- Fully compliant with the latest Electric Vehicles (Smart Charge Points) Regulations
- Suitable for residential and commercial use (three-phase power required)
- Two base and rear entry points
- Full smart functionality and OCPP 1.6J connectivity
- No earth rod required - integrated open PEN conductor protection
- Type A RCD (30mA AC + 6mA DC)
- Integrated Class C power meter, with option for external MID meter
- Compatible with EV stands from BG SyncEV (Codes: EVASTAND12S, EVASTAND12T) and EV Tower with BG SyncEV mounting plate (www.ev-tower.co.uk)
- 3-year warranty
305 (H) x 201 (W) x 115 (D) MM
|
CODES : |
EVWC2S22GGR (22KW / WI-FI / LAN / 4G / RFID) |
|
TYPE : |
SOCKETED |
|
SOCKET / PLUG : |
TYPE 2 SOCKET WITH AUTO LOCK |
|
KW : |
UP TO 22KW AC 32A MODE 3 |
|
MIN CHARGE CURRENT : |
CONFIGURABLE, 6 - 32A |
|
ELECTRICAL INPUT : |
THREE PHASE 400-415V, 50-60Hz |
|
COLOUR : |
BASE & BODY RAL 9005 (BLACK) TRIM - RAL 7016 (ANTHRACITE GREY) OPTIONAL COLOURED TRIMS AVAILABLE AS ACCESSORIES |
|
CABLE MANAGEMENT : |
BUILT IN CABLE WRAP |
|
PEN PROTECTION : |
YES, IN-BUILT EARTH DISCONNECTION |
|
EARTH ROD : |
NOT REQUIRED |
|
RCD PROTECTION : |
YES, 6mA DC, 30mA AC TYPE-A, IN-BUILT |
|
OVERLOAD AND FAULT PROTECTION : |
OVER CURRENT AND FAULT PROTECTION |
|
ELECTRICAL CLASS : |
CLASS 1, HOUSING CLASS 2 |
|
LOAD BALANCING : |
REQUIRES 3x EVA120CT1 LOAD MANAGEMENT KITS (NOT SUPPLIED. ORDER SEPARATELY) |
|
METER ACCURACY : |
2% CLASS C EQUIVALENT INTERNAL METER WITH OPTION FOR CONNECTION TO EXTERNAL RS485 MODBUS METER |
|
CONSUMER UNIT REQUIREMENTS : |
40A MCB OR 30mA TYPE-A RCD (DEPENDENT ON CABLE TYPE &/OR ROUTE) |
|
TERMINALS : |
COMBI SCREW FIRST FIX PLUG CONNECTOR |
|
INDICATOR : |
RGB LED AND BUZZER |
|
INDICATOR MODES : |
BLUE - STANDBY, FLASHING BLUE - PREPARING, GREEN - CHARGING, YELLOW - NO NETWORK, RED - ERROR |
|
HOUSING : |
UV STABILISED POLYCARBONATE |
|
WALL FIXING : |
4 POINT WITH HORIZONTAL AND VERTICAL ADJUSTMENT, SUPPLIED FIXING HOLE TEMPLATE. FIXING HOLE CENTRES :110 HORIZONTAL, 145 VERTICAL (MM) |
|
IP / IK RATING : |
IP55 / IK10 |
|
SOC MODULE : |
AI ESP32-S SOC |
|
WI-FI & ETHERNET : |
2.4Ghz 802.11 B/G/N & RJ45 |
|
WI-FI SECURITY : |
WPA/WPA2/WPA2-ENTERPRISE/WPS |
|
BLUETOOTH : |
4.2 BR/EDR and BLE |
|
CONNECTION PROTOCOL : |
OCPP 1.6J |
|
4G DATA : |
3 YEARS INCLUDED, WHEN USED WITH MONTA (ON THE INCLUDED PACKAGE). TOP-UP ONLINE TO CONTINUE SERVICE AFTER 3 YEAR |
|
APP : |

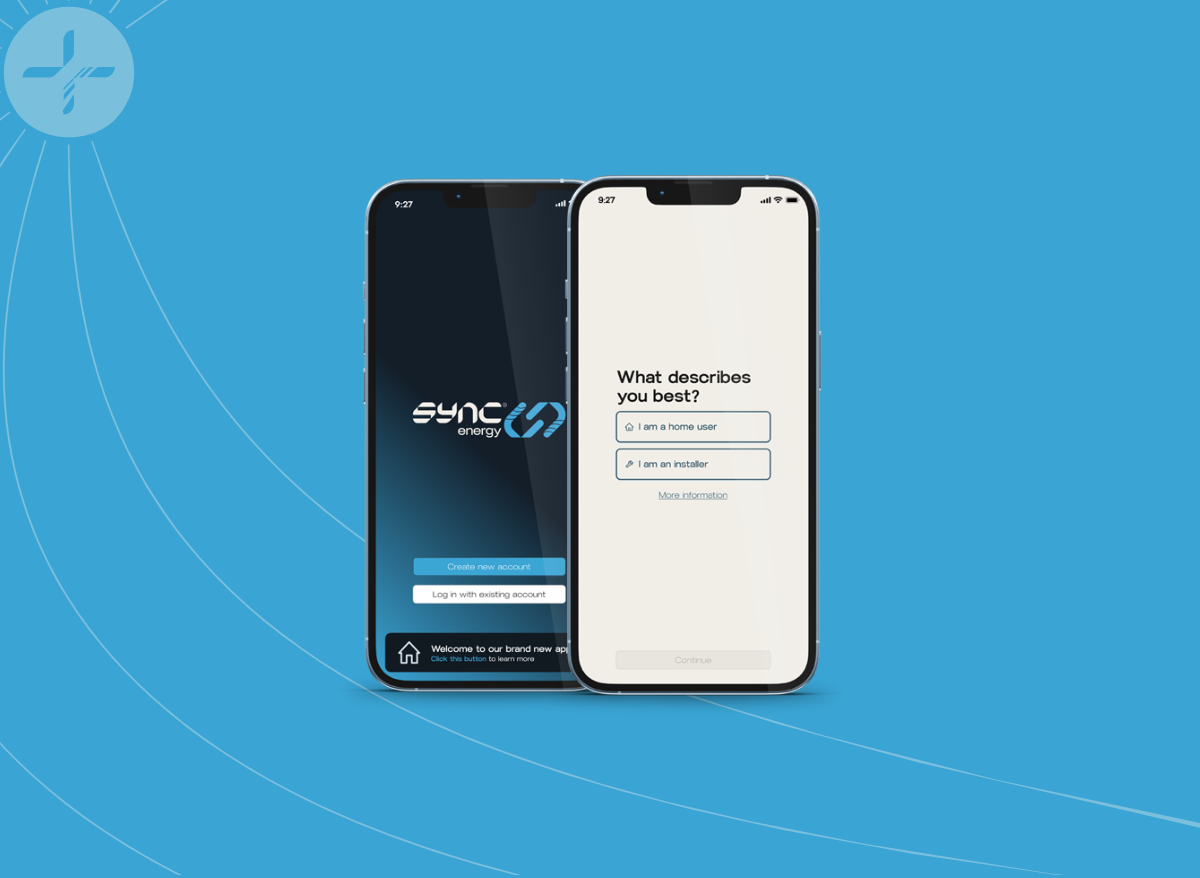

POWERED BY MONTA |
|
OPERATING TEMP : |
-25 TO +40°C |
|
SOFTWARE & FIRMWARE UPDATE : |
OVER-THE-AIR |
|
WARRANTY : |
3 YEARS |
|
STANDARDS & APPROVALS : |
IEC61851-1, IEC61439-7, IEC 62955, IC 61851-21-2, BS EN62196, EN301 511, EN 301 908-1/2/13, EN 301 489-3, EN 300 330, EMC COMPLIANT, CE, UKCA, THE ELECTRIC VEHICLES (SMART CHARGE POINTS) REGULATIONS 2021 INCLUDING SCHEDULE 1 |
|
SUPPLIED ACCESSORIES : |
5x BASE FIXING WASHERS,5x ASSEMBLY LID BOLTS, 1x BLANKING PLUG AND 1x 25MM COMPRESSION GLAND, USER-SIDE CONNECTOR, CORD GRIP AND 2x CORD GRIP ASSEMBLY SCREWS |
|
DIMENSIONS (MM) : |
305 (H) x 201 (W) x 115 (D) |
|
ADDITIONAL : |
ANTI TAMPER DETECTION - 2 LAYER PROTECTION, BLUETOOTH TO BLUETOOTH COMMISSIONING |
|
ACCESSORIES : |

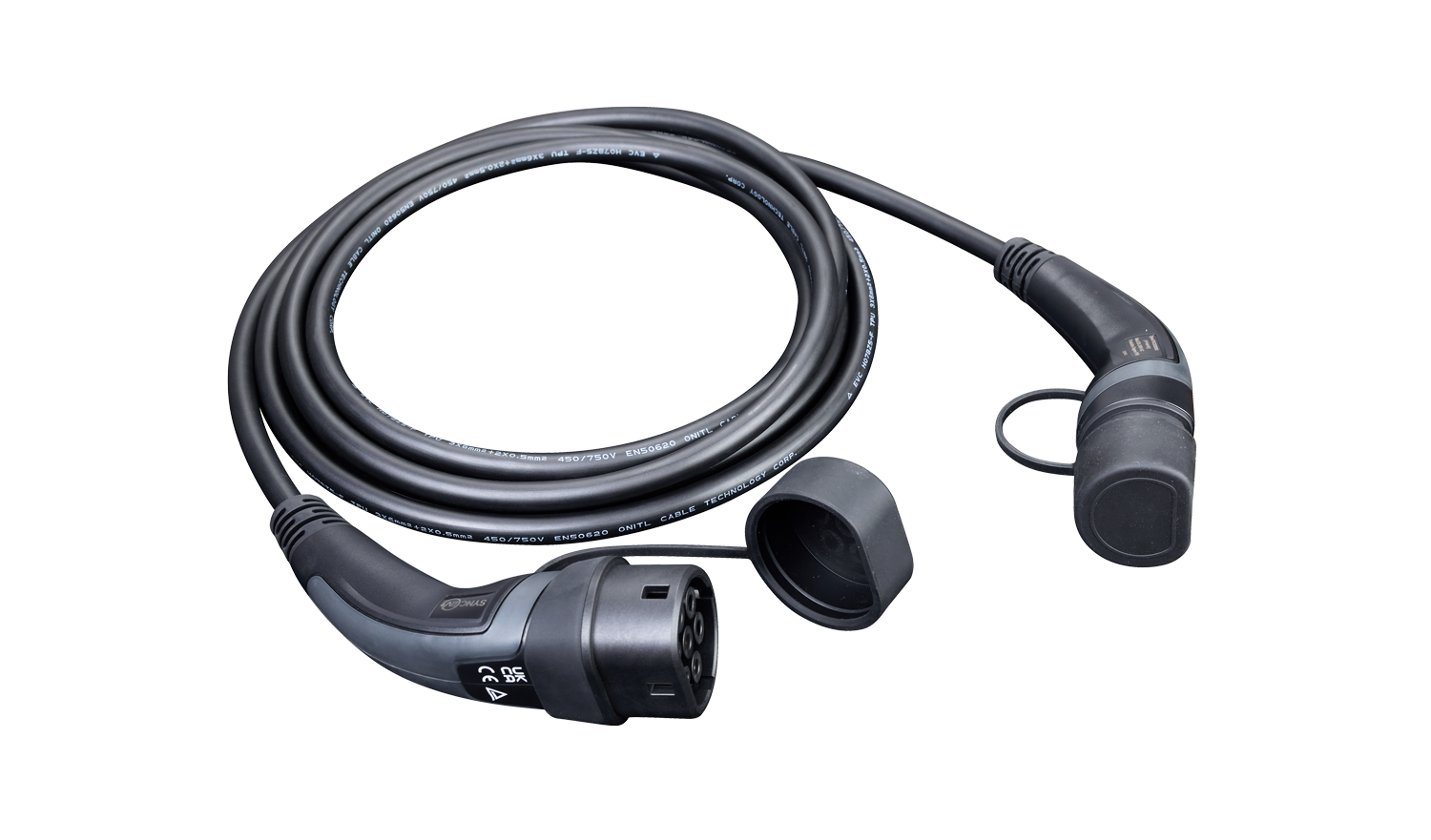

SINGLE CHARGER STAND(EVASTAND12S) TWIN CHARGER STAND(EVASTAND12T) COMPATIBLE WITH EV-TOWER STANDS WITH BG SYNCEV MOUNTING PLATE (WWW.EV-TOWER.CO.UK) LOAD MANAGEMENT KIT(EVA120CT1) CHARGING CABLES COLOURED FASCIAS(VARIOUS OPTIONS, SEE SYNCEV.CO.UK) |
3 Year Warranty
See our Warranty page for more information
