Select your charger (5 options)
Code:
BG SyncEV compact socket charger 7.4kW - Black
- Compliant with The Electric Vehicles (Smart Charge Points) Regulations 2021, excluding Schedule 1
- Approved by the regulator for sale & installation until 31st October 2023 (OPSS Enforcement Undertaking Approved 27th January 2023)
- RFID functionality enables use of your charger without using the app - simply swipe your card to start or stop charging
- Wifi connectivity - free lifetime software updates over-the-air
- Full Smart! functionality - OCPP 1.6J connectivity
- Dynamic charging - up to 7.4 kW
- No earth rod required - integrated open PEN conductor protection
- Safe - integrated earth fault protection (RCD) + PEN protection system

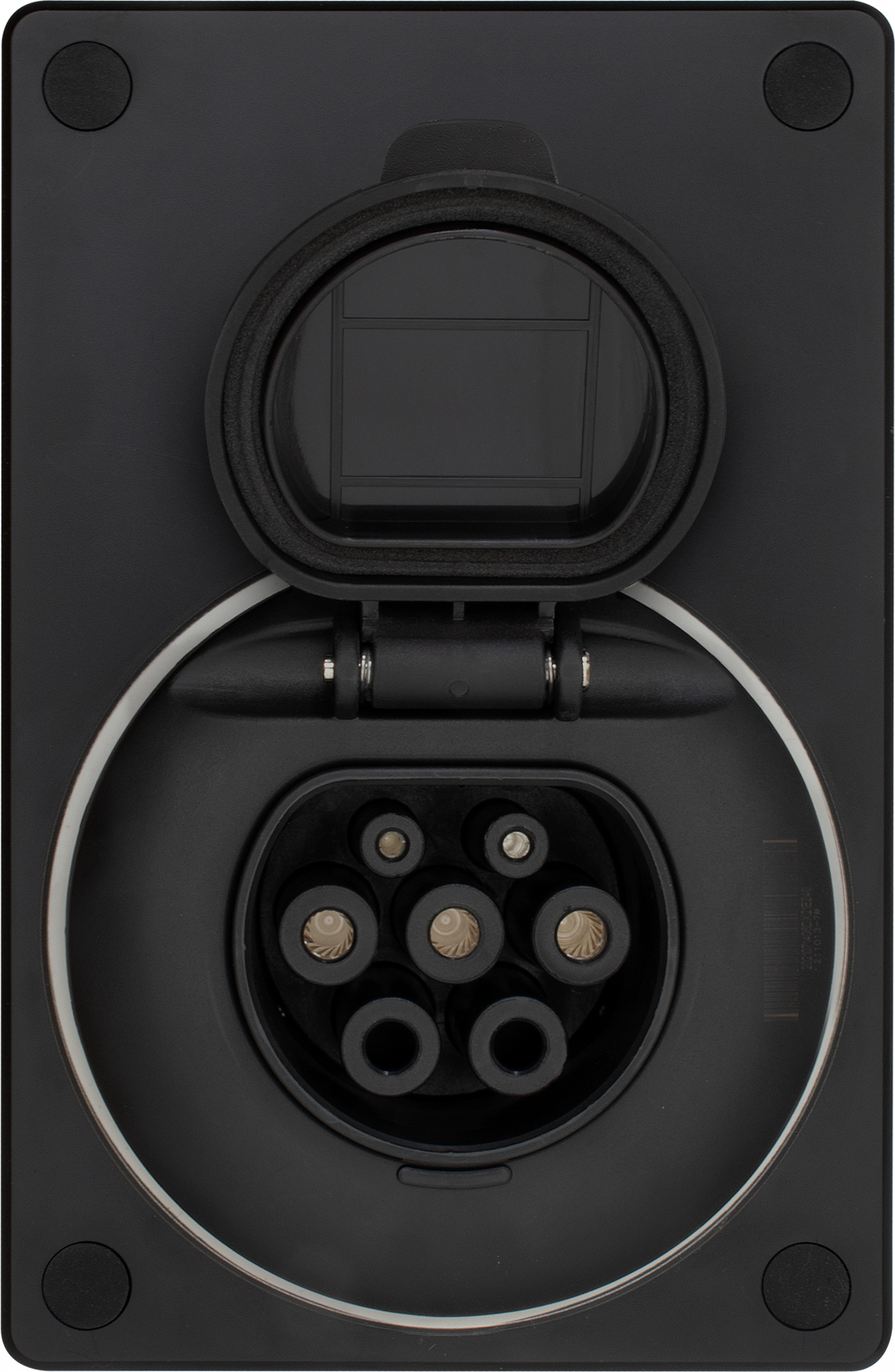

- Type 2 socket
- 3-year homeowner warranty
Product information

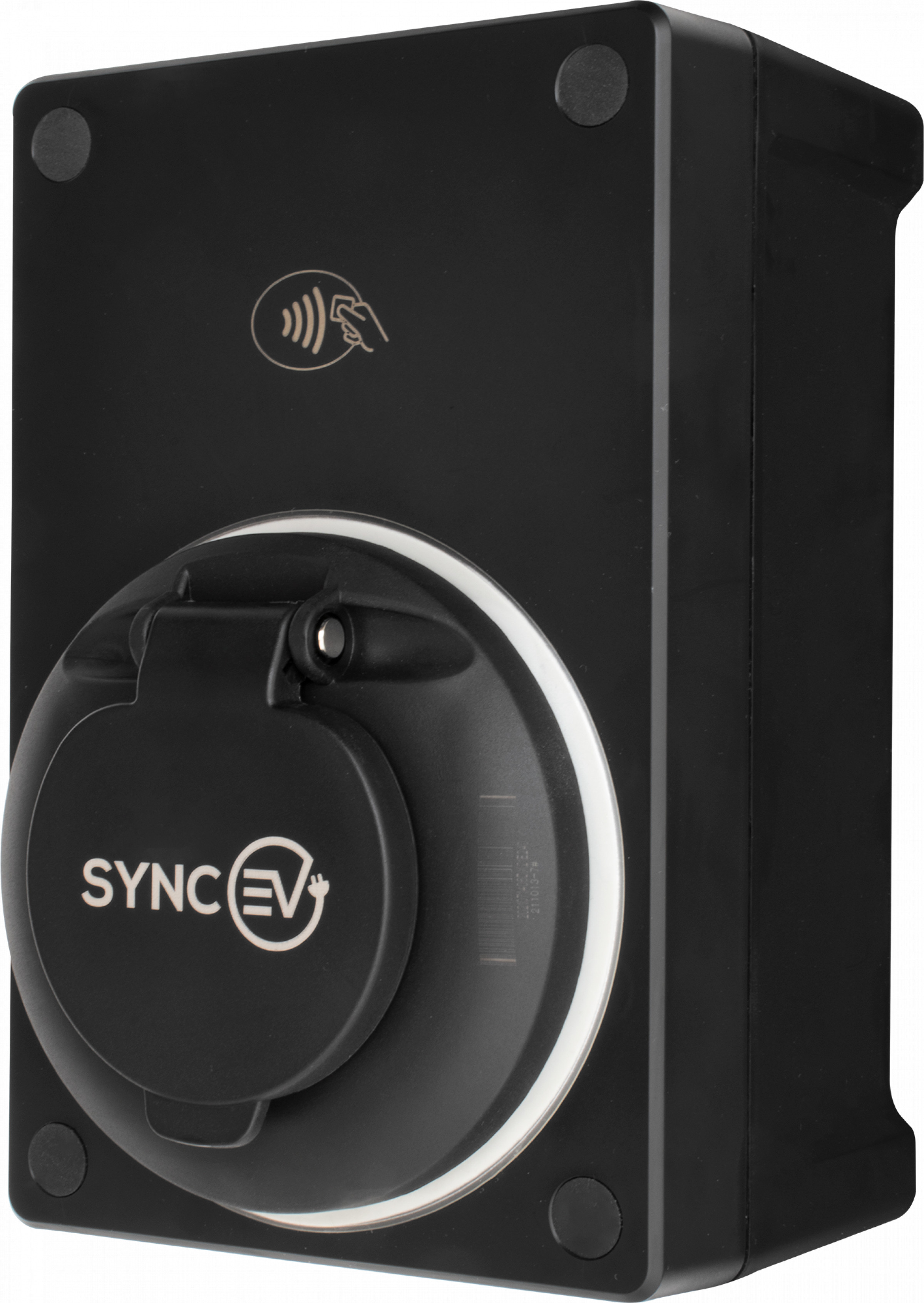

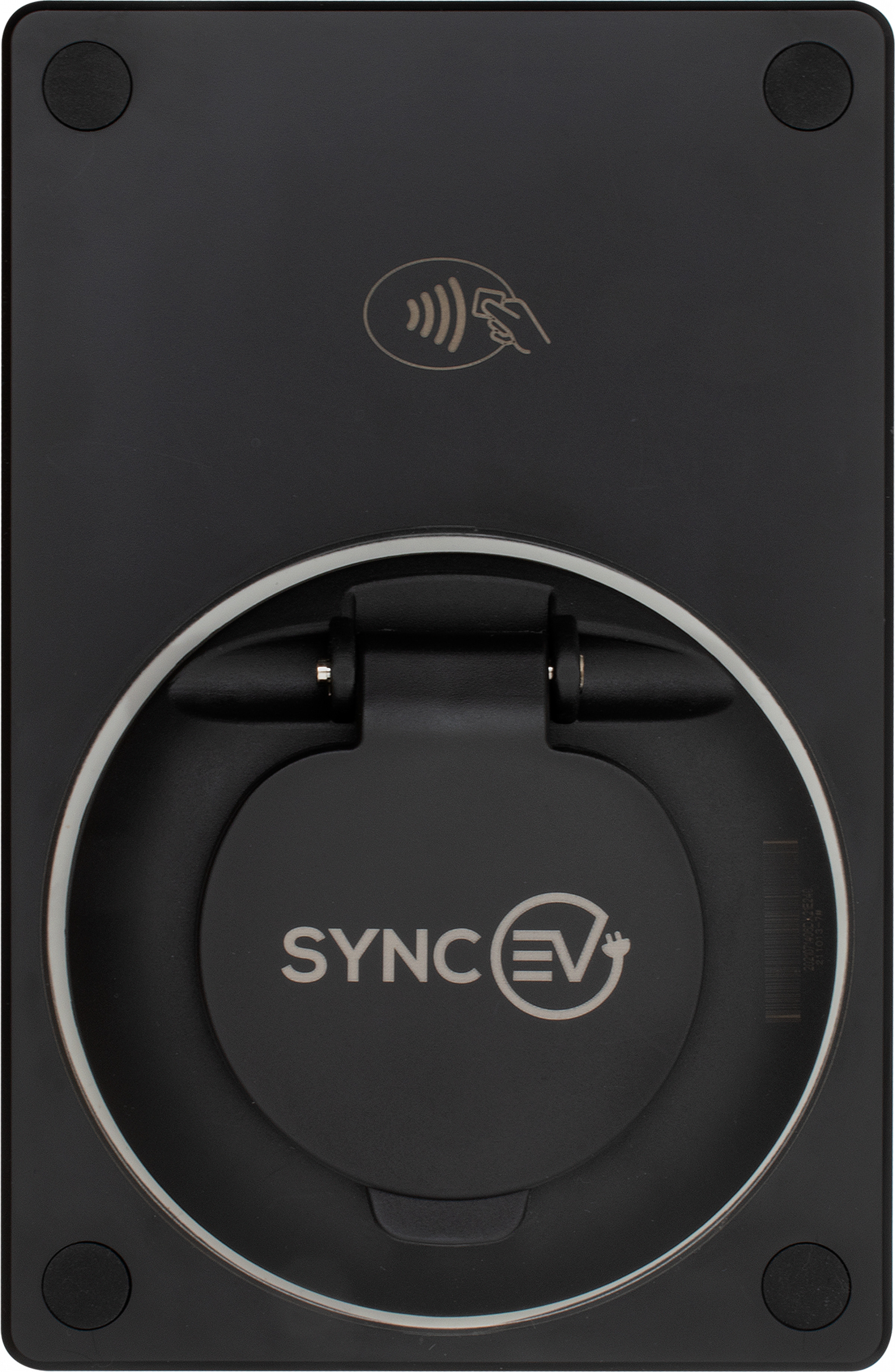

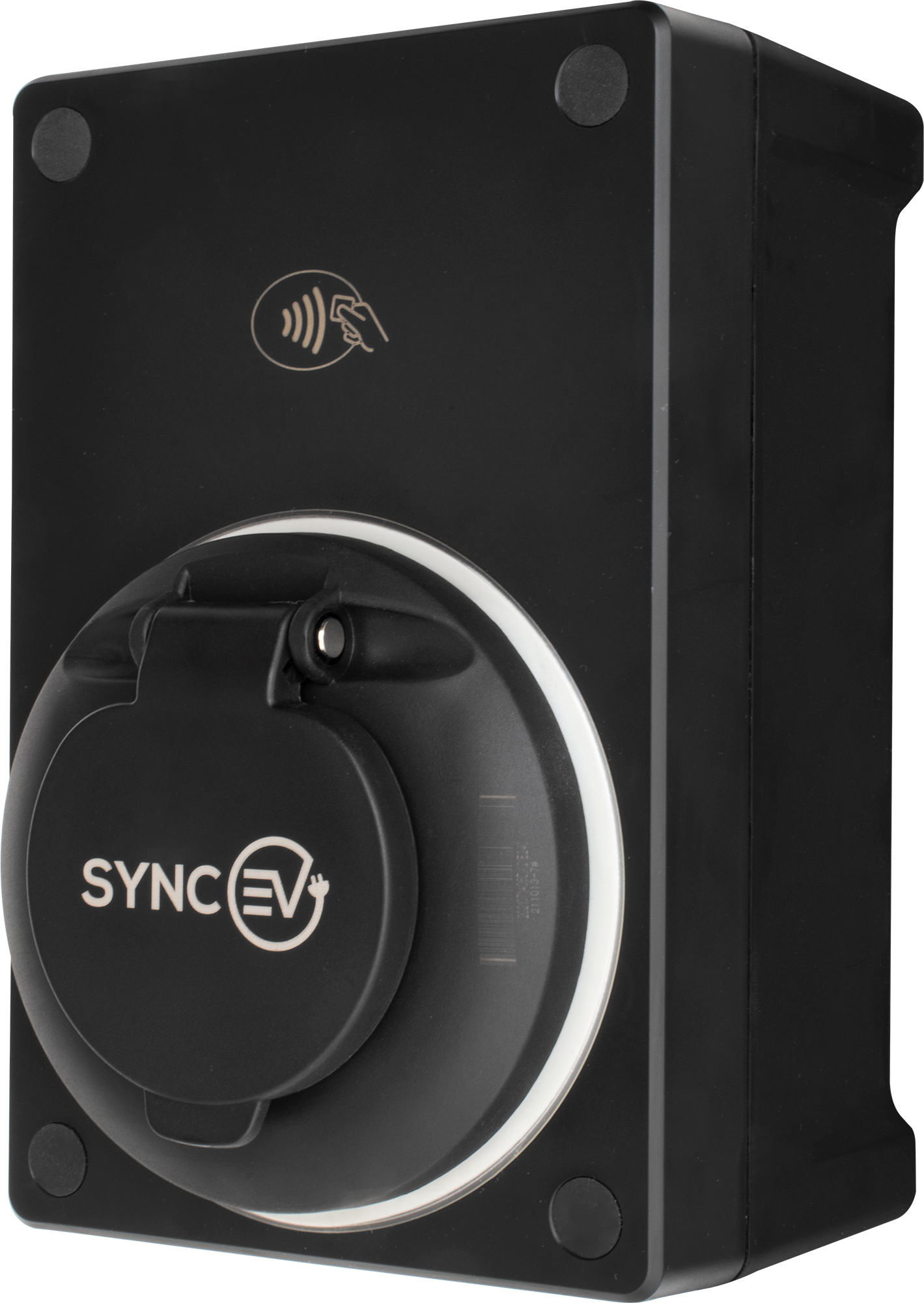

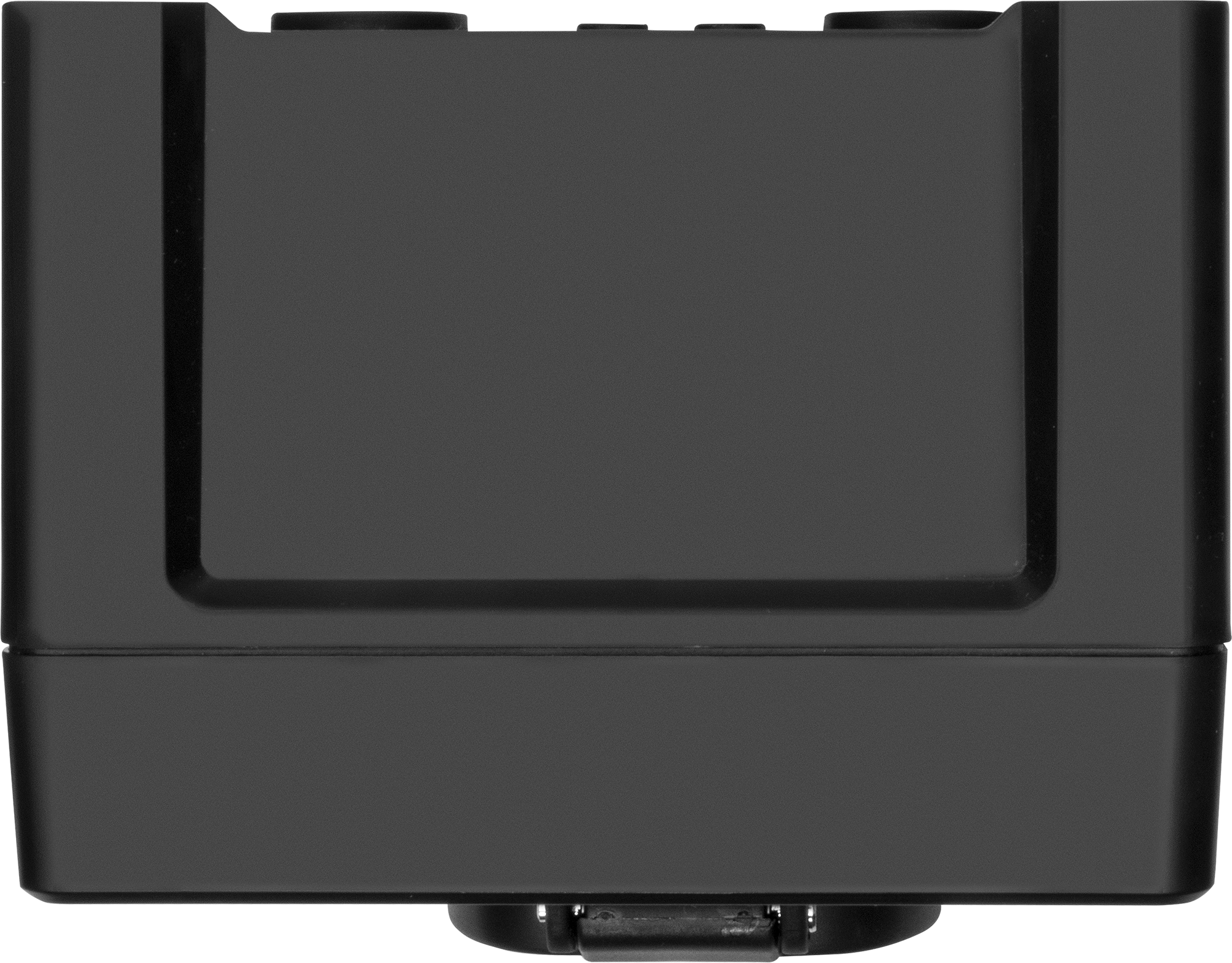

BG SyncEV 7.4kW socket wall charger with WiFi, RFID and Smart! functionality. Offering installers quick and easy installation, with UK based technical support and backed by a 3 year warranty. Black body.
- Compliant with The Electric Vehicles (Smart Charge Points) Regulations 2021, excluding Schedule 1
- Approved by the regulator for sale & installation until 31st October 2023 (OPSS Enforcement Undertaking Approved 27th January 2023)
- RFID functionality enables use of your charger without using the app - simply swipe your card to start or stop charging
- Wifi connectivity - free lifetime software updates over-the-air
- Full Smart! functionality - OCPP 1.6J connectivity
- Dynamic charging - up to 7.4 kW
- No earth rod required - integrated open PEN conductor protection
- Safe - integrated earth fault protection (RCD) + PEN protection system

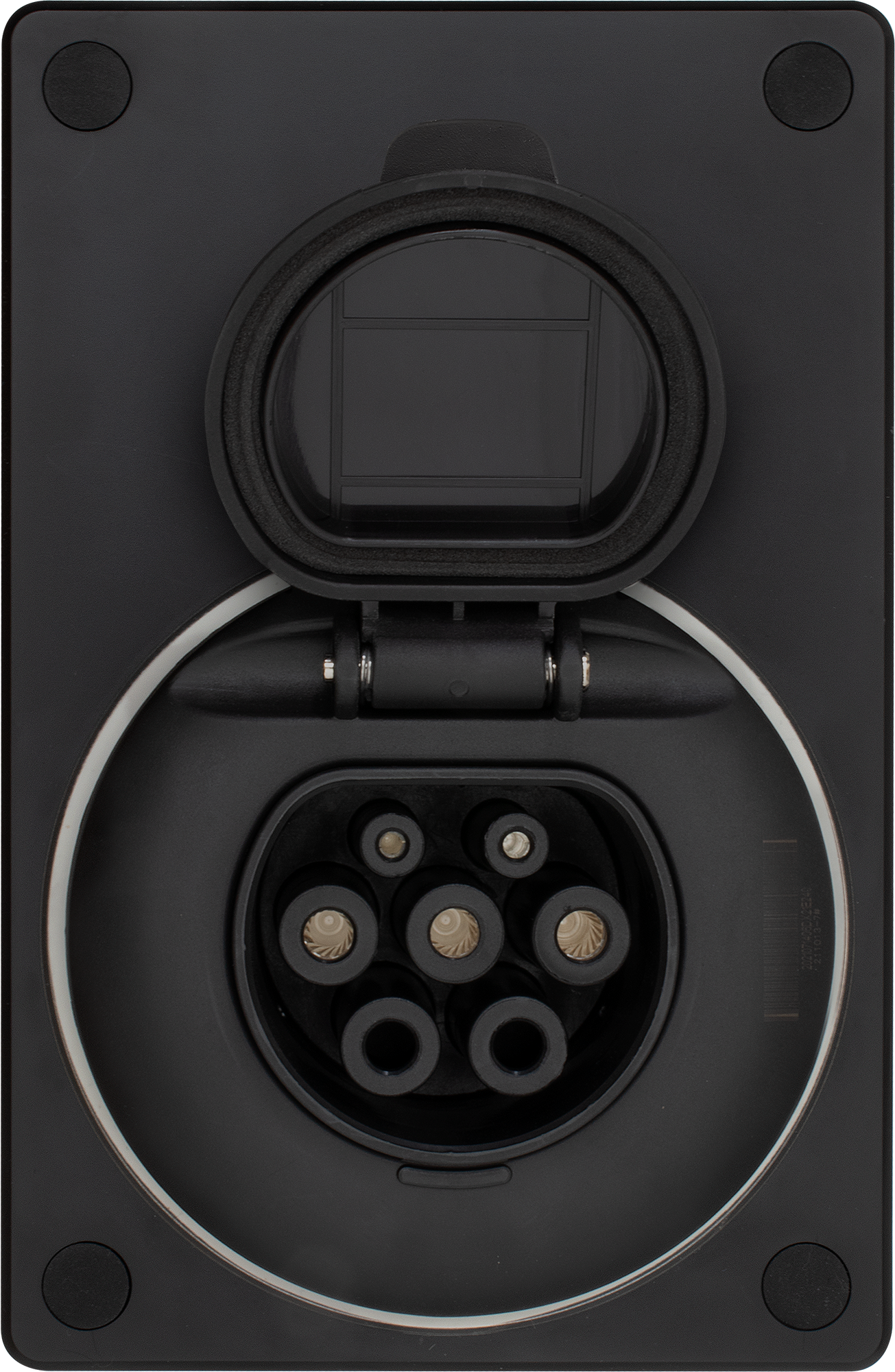

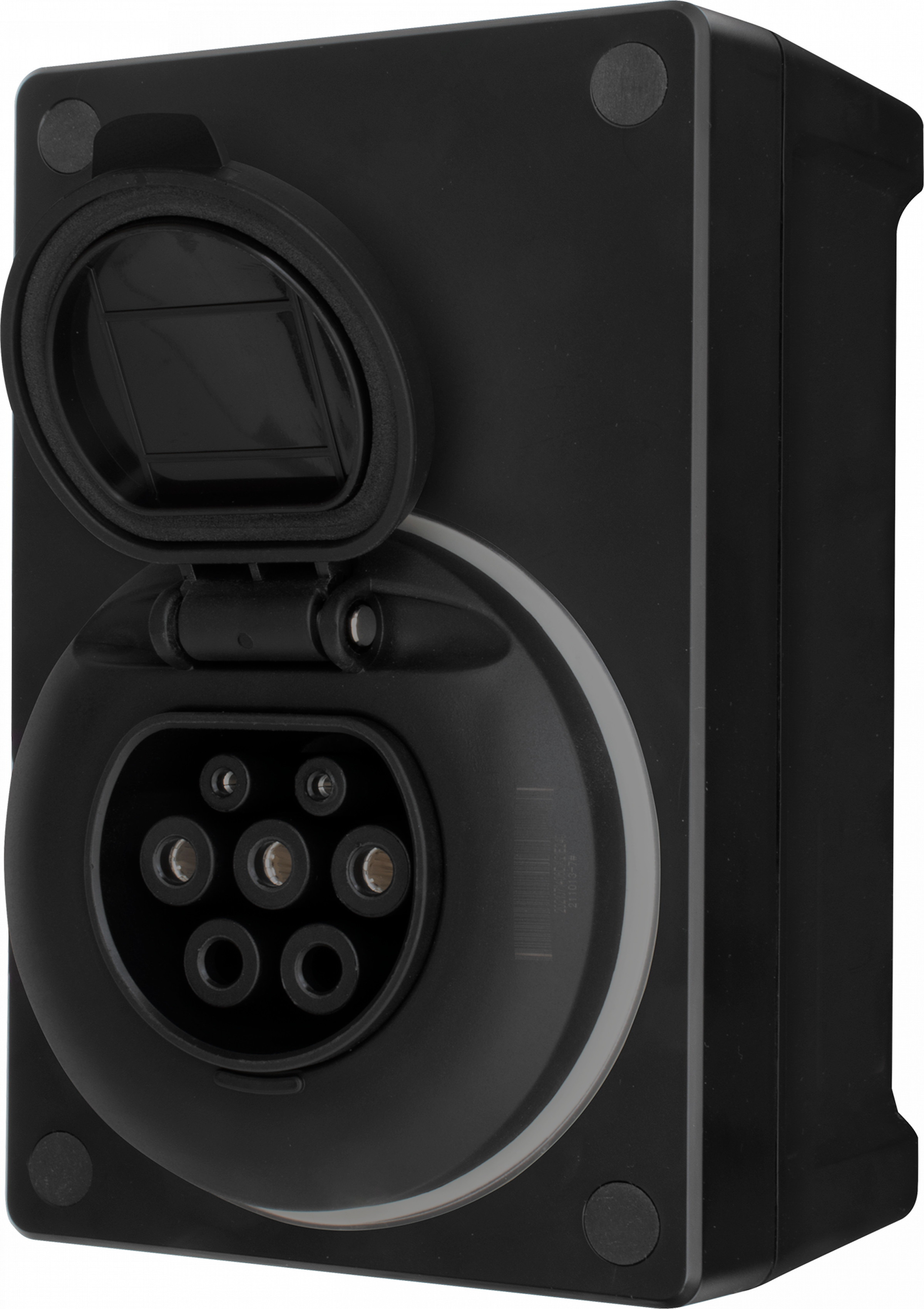

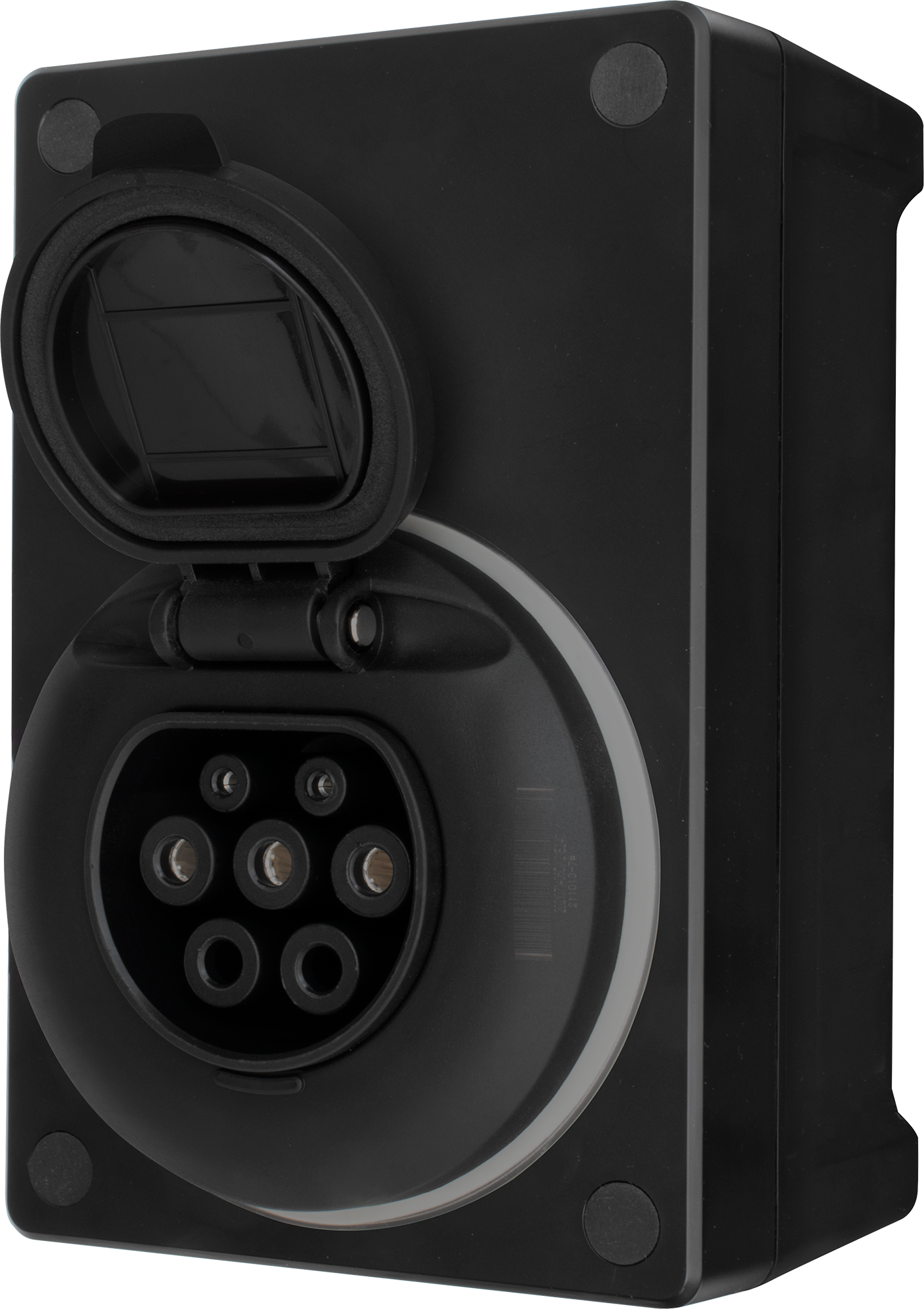

- Type 2 socket
- 3-year homeowner warranty
187 (H) X 122 (W) X 90 (D) MM
| CODE : | EVCP-7KW-S-1PH:32A BLACK |
| TYPE : | Socket - Type 2 |
| COMMUNICATION : | Wi-Fi, RFID |
| DIMENSIONS : | 187 (H) X 122 (W) X 90 (D) MM |
| KW : | 7.4KW 32A MODE 3 |
| MIN CHARGE CURRENT : | CONFIGURABLE, 6 - 32A |
| ELECTRICAL INPUT : | 220-240V, 50-60Hz, SINGLE PHASE |
| COLOUR : | RAL 9005 MATT (BLACK) BODY |
| PEN PROTECTION : | YES, IN-BUILT EARTH DISCONNECTION |
| EARTH ROD : | NOT REQUIRED |
| RCD PROTECTION : | YES, 6mA DC, 30mA TYPE-A, IN-BUILT |
| OVERLOAD AND FAULT PROTECTION : | OVER CURRENT AND FAULT PROTECTION |
| ELECTRICAL CLASS : | CLASS 1, HOUSING CLASS 2 |
| LOAD BALANCING : | YES, OPTIONAL ACCESSORY |
| CONSUMER UNIT REQUIREMENTS : | 40A MCB OR 30mA TYPE-A RCD (Dependent on cable type &/or route) |
| TERMINALS : | FIRST FIX PLUG CONNECTOR |
| INDICATOR : | RGB LED HALO RING |
| INDICATOR MODES : | BLUE - STANDBY, GREEN - CHARGING, YELLOW - NO NETWORK, RED - ERROR |
| HOUSING : | UV STABILISED POLYCARBONATE |

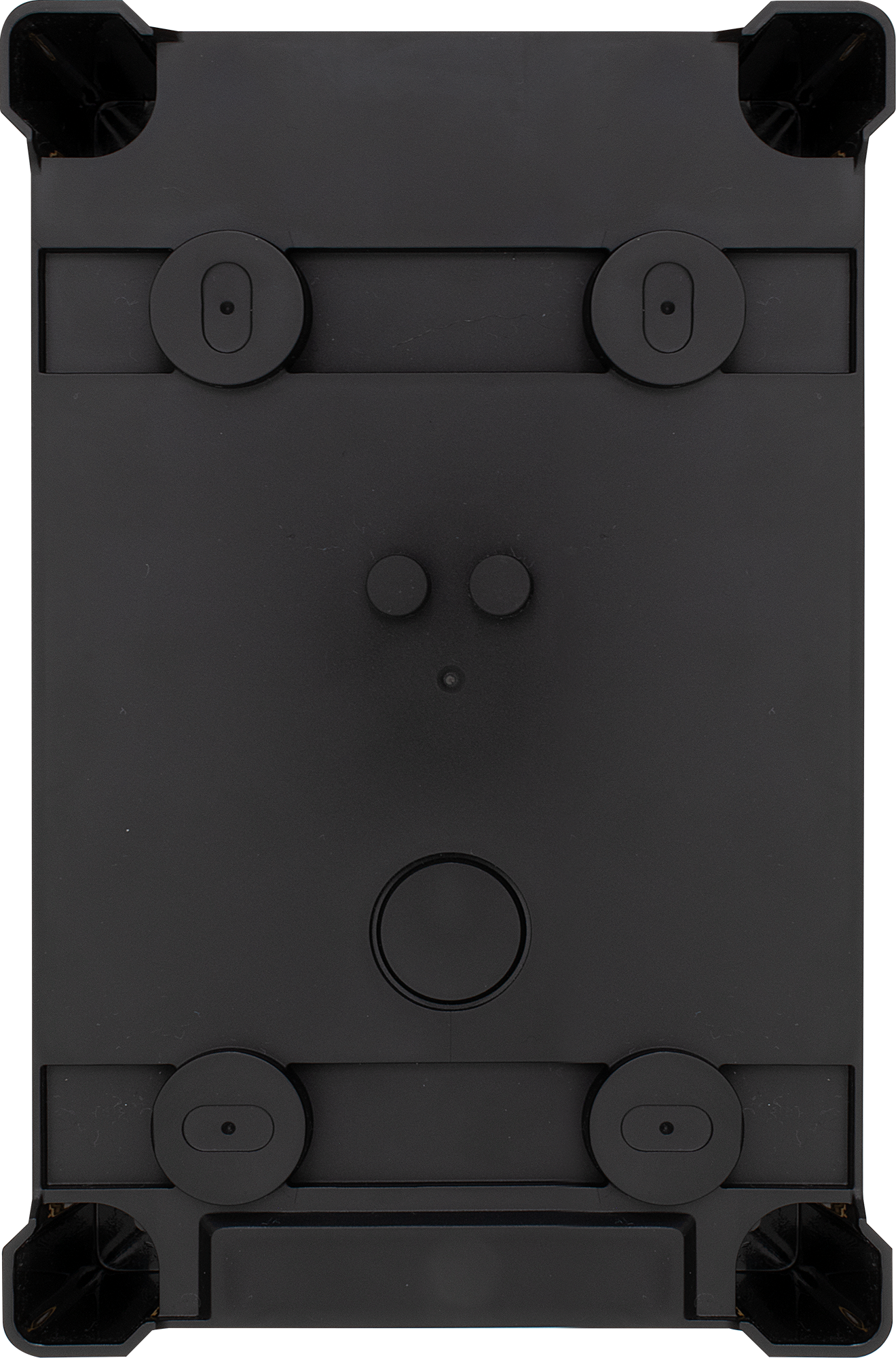

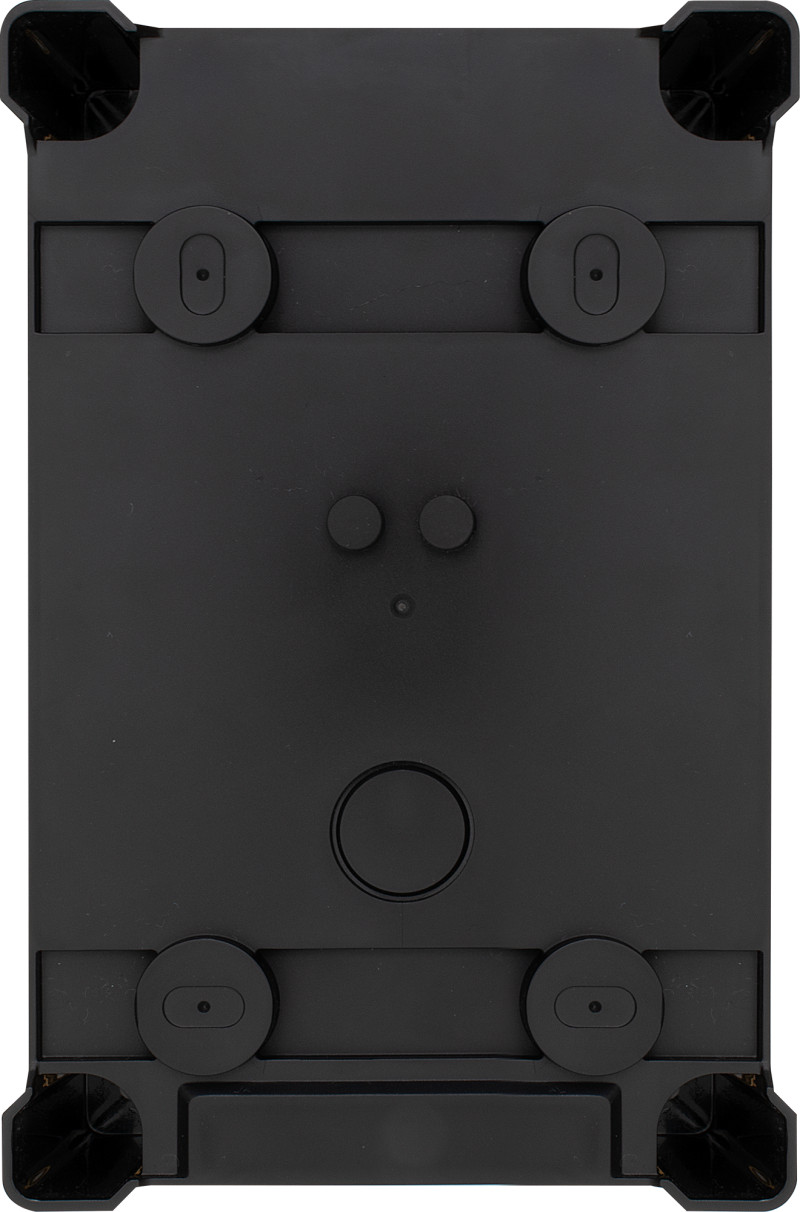

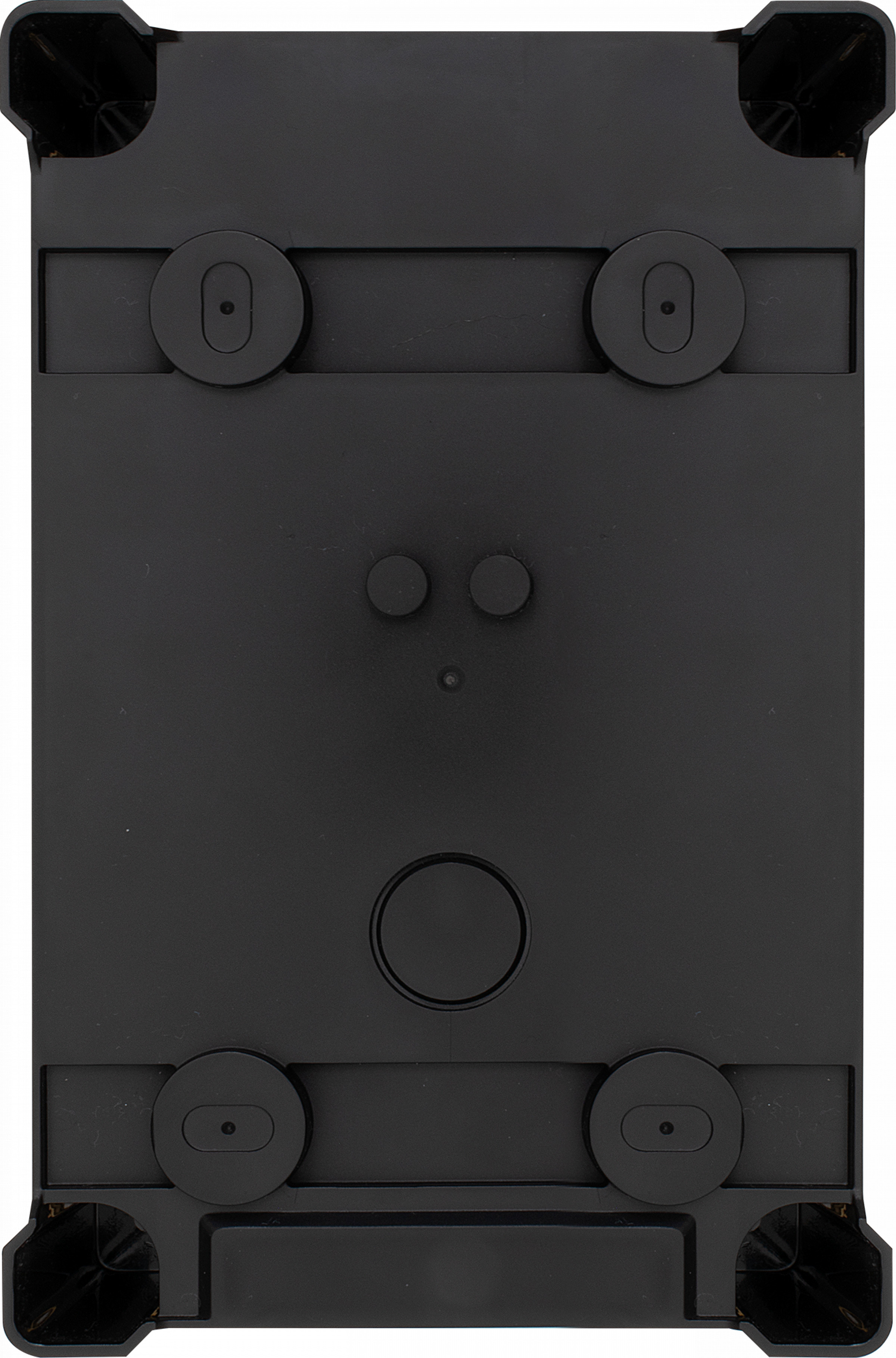

| WALL FIXING : | 4 point with horizontal and vertical adjustment, supplied fixing hole template |
| IP RATING : | IP55 |
| IK RATING : | IK08 |
| SOC MODULE : | AI ESP32-S SOC |
| ETHERNET : | RJ45 |
| WI-FI : | 2.4Ghz 802.11 b/g/n/e/i |
| BLUETOOTH : | BT4.2 |
| CONNECTION PROTOCOL: | OCPP 1.6J |
| APP AND BACK OFFICE : | SYNC EV |
| OPERATING TEMP : | -25 TO +40°C |
| SOFTWARE & FIRMWARE UPGRADE : | OVER-THE-AIR |
| WARRANTY : | 3 YEARS |
| STANDARDS & APPROVALS : | IEC61851-1 EDITION 3.0 2017-02 |
